Power supply: AC100-240V, 50/60Hz,
Lamp power: 900W
LIGHT SOURCE: OSRAM SIRIUS HRI550W
Color temperature: 7500K
Light source life: 1500 hours
XY/: Horizontal scanning: 540° (8/16bit precision scanning).
Vertical scanning: 270° (8/16bit precision scanning).
Reset function with automatic error correction.

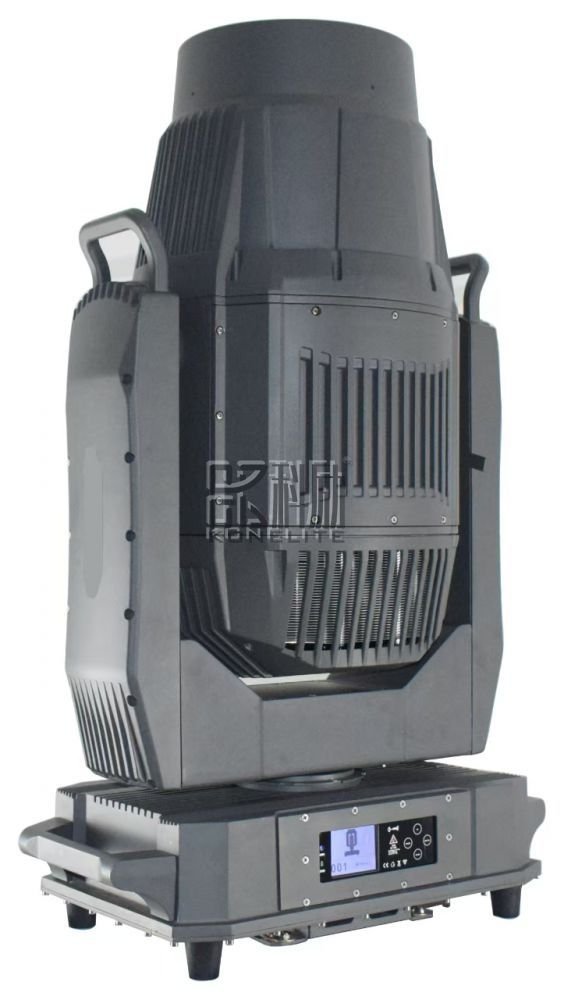

Display system: 2.4 inch LCD display, 4 touch button function control,
The display can be changed at 180°, with a screen-off function, and the Chinese and English can be switched.
DMX control system: standard DMX512 communication protocol, RDM two-way communication protocol
Optical system: two sets of high-definition coated combination mirrors, the effective diameter of the lens is 265mm
Color system : 1 chip disc: 14 chips White light, half-color effect, rainbow effect with bidirectional rotation.
Pattern system 1 fixed pattern: 19 patterns white circle, pattern with jitter function.
The zoom system has linear electronic focusing, and the focus is adjusted smoothly.
Beam mode: 0-1.8° quiet linear high-speed screw motor drive zoom.
Prism system: 2 prisms: 8 prisms and 16 prisms, which can superimpose the rotation function in the forward and negative directions.
Atomization system: Two-piece atomization system, which can gradually change the atomization effect from shallow to dark
Dimming: Dual-chip strobe structure, 0-100% linear dimming.
Strobe: Up to 20Hz, random strobe can be selected, and the speed is controllable.
Degree of protection: IP66
18/24 channel control mode, standard DMX512 protocol. RDM control.
Product size: 546X301X902mm
Packing size (carton): 720X470X1135mm
Net weight: 59.5KG
Gross weight (carton): 68.8KG
