Input voltage range: 100-240V, 50/60Hz
Whole lamp power: 910W light source: 800W white LED
Total luminaire lumen output: 5,2500 lumens
Luminaire color temperature output: 7,000K
Power Input/Output: Waterproof Power Connector Input/Output
Data in/out: 3-pin waterproof XLR, RJ45 connector
Zoom range: 3.5°-45°
Standard mode: Ra>70HCRI mode: Ra≥90
Front mirror diameter: 145mm
4 touch button control panels
Display: LCD display
Protocols: DMX512, RDM, Art-Net, sACN
Control channel: 40CH/30CH/21CH
2 combinable rotating and indexable prisms: 4 prisms and 4 mirrors to rotate the static pattern in both directions
1 static gobo: 13 patterns, plus an open pattern
Pattern: Ф17mm, Image: Ф13mm
Linear CMY color mixing
Linear CTO color correction: 2,700K-7,000K 1 color wheel: 6 colors CTB plus

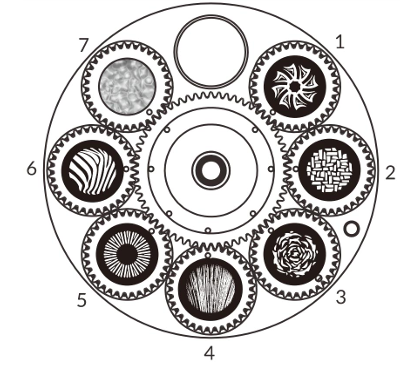

1 rotating gobo: 8 gobos, plus open
Pattern slot 1-7: Ф20mm, image: Ф12mm, pattern groove 8: Ф20mm
IP Rating: IP65
A two-way continuously rotating graphic animation wheel, used alone or in combination with gobos to create brilliant water wave effects, and can be swapped out for other wheels to pan and tilt
Panning Motion: 540° Tilt Motion: 260° Automatic Pan/Tilt Position Correction
Resolution: 16-bit

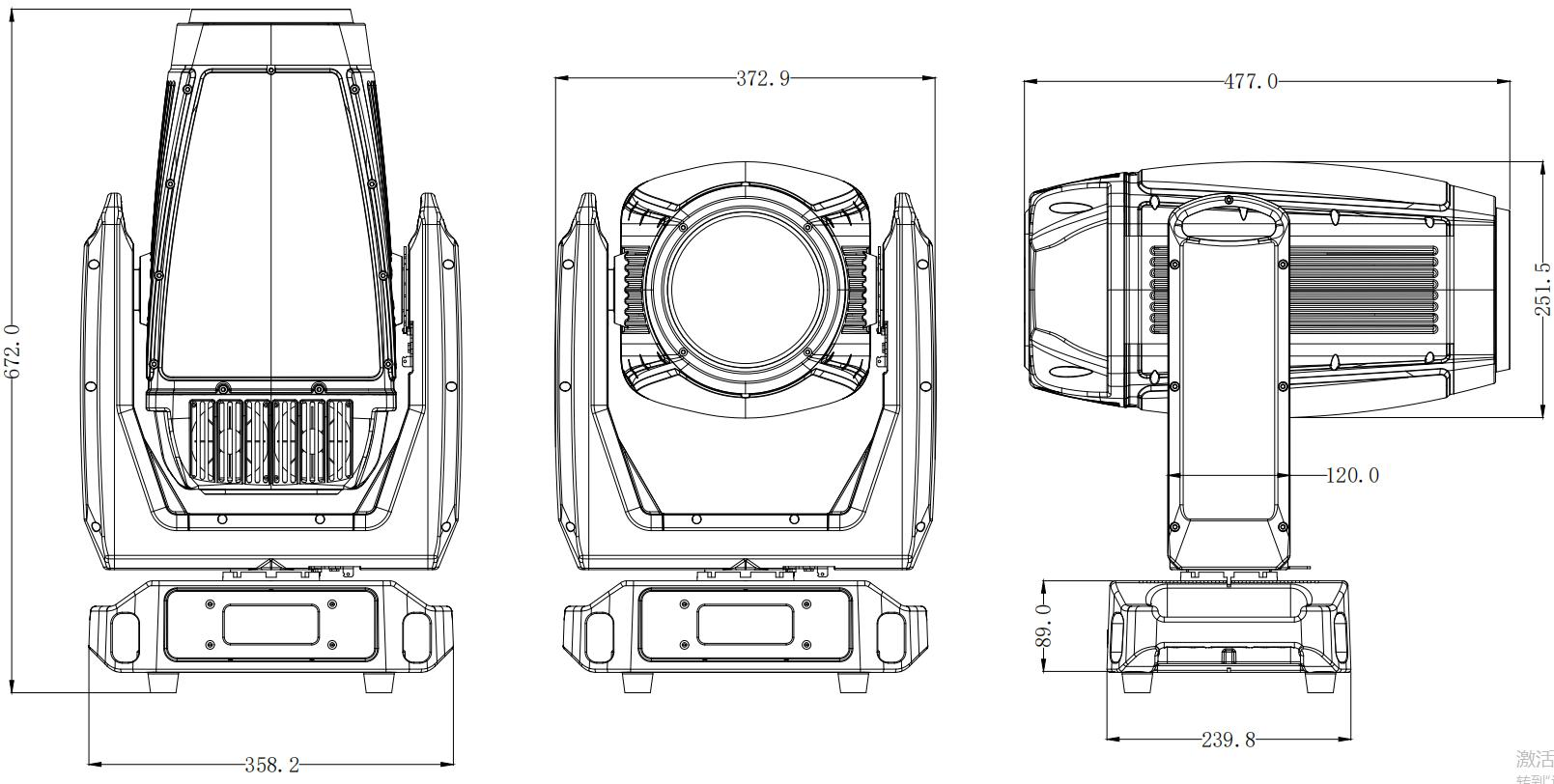

Lamp size: 358.2X239.8X658mm
Weight: 29kg

Patterns and colors:
