Light source:

Strobe LED: 86 1W RGBW four in one LED beads, LED segments: 24 (3 x 8)

Strobe LED: 576 1.6W CW LED beads, LED segments: 96 (24 x 4)

control

DMA channel mode: 18/48/109A/109B/128/200

Display screen: Full color 180 ° flippable LCD menu display screen

Control protocols: DMA, RDM, ArtNet, sACN

Cooling system: temperature control, overheating protection

effect

Dimming: 0-100% electronic 16 bit dimming

Built in effects: preset CTO/LED macro effects

Connecting the system

Signal connection: Xishang IP65 XLR five core or three core input/output

Power input: Xishan powerCON TRUE1 input/output

Power:

Power supply: 100-240V AC/50-60Hz

Power consumption: 1200W/230V (dynamic) 1800W/230V (peak @ flicker)

Temperature: -30 ℃~45 ℃

Size&Weight

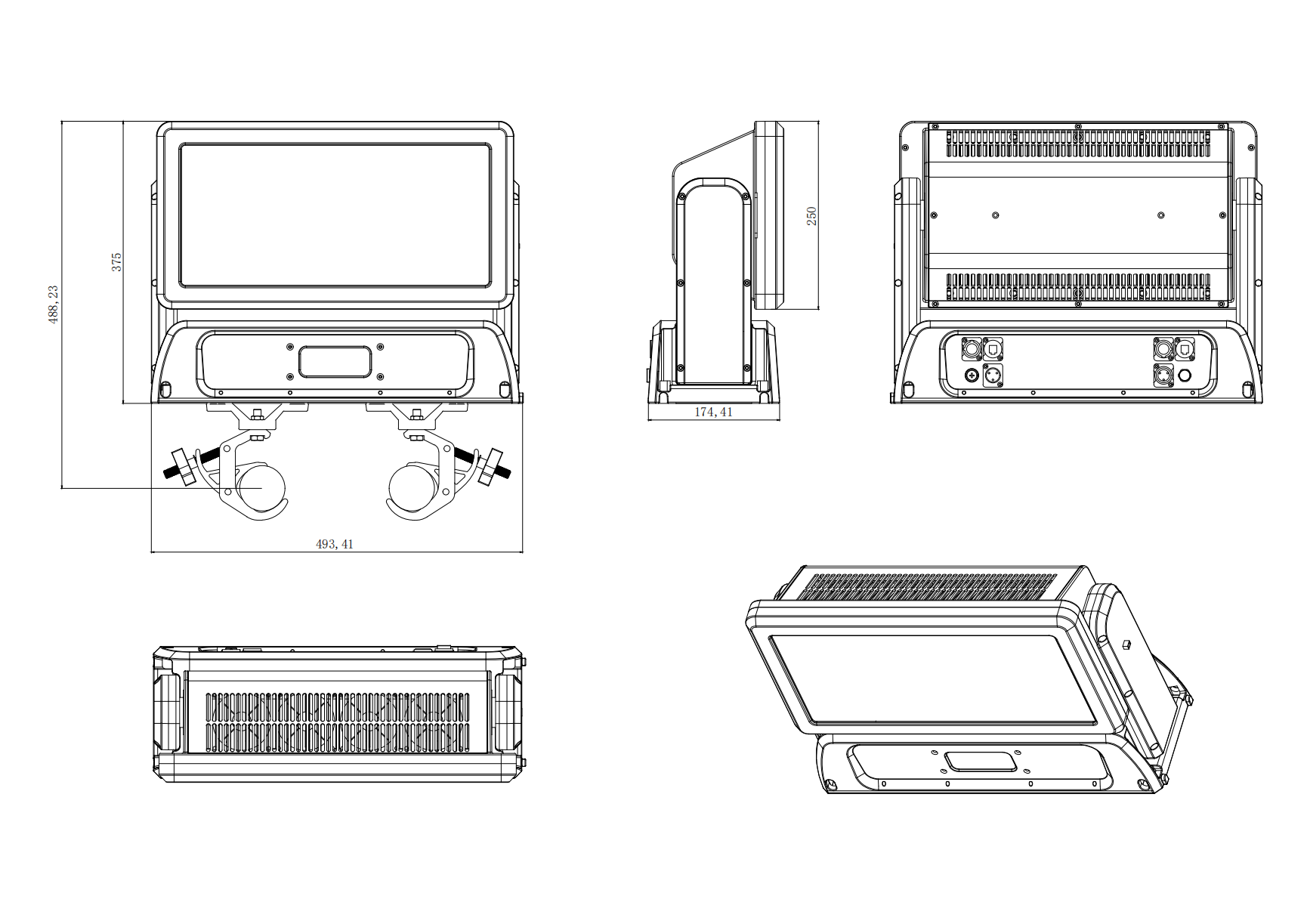

Size: 493 x 175 x 400mm

Weight: 14 kilograms

Waterproof grade IP65
